Supercontinuum Laser

No. FR-SC-SL

LEUKOS-

CARS

SC

SM & SM^IR

SP & SP^UV

ST

LEUKOS-CARS

Features
Pump/Stokes dual output
White light emission from visible to NIR
Spatially singlemode
Sub-nanosecond pulses
High spectral resolution
Compact device

Applications
Multicolour CARS imaging

Specifications

LEUKOS-CARS-OEM	CARS-OEM
Spectral bandwidth	420 nm -> 2400 nm
Spatial profile	Singlemode (LP01 mode)
Average power @ Stokes output	> 100 mW
Average power @ Pump output	> 100 mW
Repetition rate	> 30 kHz
Spectral resolution	< 0.1 cm-1
Pulse width	< 1 ns
Spectrum	See complete datasheet

LEUKOS-SC

Features
Broadband emission from UV to NIR
Spatial singlemode
Sub-nanosecond pulses
Compact

Applications
Spectroscopy
High-resolution imaging (OCT, confocal microscopy)
Flow cytometry
LIDAR
Optical Component Test

Specification

LEUKOS-SC-OEM*	SCM-8-OEM
Spectral bandwidth	420 nm -> 2400 nm
Spatial profile	Singlemode (LP01 mode)
Total average power	> 20 mW
Repetition rate	8 kHz
Pulse width	< 1 ns
Spectrum	See complete datasheet

* Options : Trigger / Average power adjustement / UV extension

LEUKOS-SM & SM^IR

Features
Broadband emission from UV to NIR
Spatial singlemode
Sub-nanosecond pulses
Compact

Applications
Spectroscopy
High-resolution imaging (OCT, confocal microscopy)
Flow cytometry
LIDAR
Optical Component Test

Specifications

LEUKOS-SM-OEM	SM-20-OEM	SM-8-OEM
Spectral bandwidth	420 nm -> 2400 nm	420 nm -> 2400 nm
Spatial profile	Singlemode (LP01 mode)	Singlemode (LP01 mode)
Total average power	> 70 mW	> 20 mW
Repetition rate	20 kHz	8 kHz
Pulse width	< 1 ns	< 1 ns
Spectrum	See complete datasheet	See complete datasheet

LEUKOS-SM^IR-OEM	SM^IR/L-20-OEM	SM^IR/F-20-OEM
Spectral bandwidth	1000 nm -> 2400 nm	1000 nm -> 2200 nm
Spatial profile	Singlemode (LP01 mode)	Singlemode (LP01 mode)
Total average power	> 60 mW	> 40 mW
Repetition rate	20 kHz	20 kHz
Pulse width	< 1 ns	< 1 ns
Coupling loss with singlemode fiber in near-IR	< 1 dB	< 0.1 dB

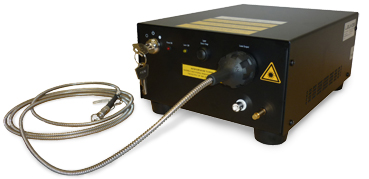

LEUKOS-SP & SP^UV

Features
Broadband emission from UV to NIR
Spatial singlemode
Sub-nanosecond pulses
Compact

Applications
Spectroscopy
High-resolution imaging (OCT, confocal microscopy)
Flow cytometry
LIDAR
Optical Component Test

Specifications

LEUKOS-SP-OEM*	SP-8-OEM	SP-20-OEM
Spectral bandwidth	370 nm -> 2200 nm	370 nm -> 2300 nm
Spatial profile	Singlemode (LP11 mode in the visible range)	Singlemode (LP11 mode in the visible range)
Total average power	> 15 mW	> 65 mW
Repetition rate	8 kHz	20 kHz
Pulse width	< 1 ns	< 1 ns
Spectrum	See complete datasheet	See complete datasheet

LEUKOS-SP^UV-OEM*	SP^UV-8-OEM	SP^UV-20-OEM
Spectral bandwidth	320 nm -> 2200 nm\ Singlemode (LP11 mode in the visible range)	320 nm -> 2200 nm
Spatial profile	> 15 mW	Singlemode (LP11 mode in the visible range)
Total average power	8 kHz	> 45 mW
Repetition rate	< 1 ns	20 kHz
Pulse width	See complete datasheet	< 1 ns
Spectrum	See complete datasheet

* Patended

LEUKOS-ST

Features
White light emission from UV to NIR
Triggered source
Spatially singlemode
Sub-nanosecond pulses
Low jitter (< 2 μs)
Compact device

Applications
Spectroscopy
High-resolution imaging (OCT, confocal microscopy)
Flow cytometry
LIDAR
Optical Component Test

Specifications

LEUKOS-ST-OEM	STP-4-OEM	STM-4-OEM
Spectral bandwidth	370 nm -> 2300 nm	420 nm -> 2400 nm
Spatial profile	Singlemode (LP11 mode in the visible range)	Singlemode (LP01 mode in the visible range)
Total average power	< 10 mW	< 12 mW
Repetition rate	From 10 Hz to 4 kHz	From 10 Hz to 4 kHz
Pulse width	< 1 ns	< 1 ns
Timing jitter	< 2 µs	< 2 µs
Spectrum	See complete datasheet	See complete datasheet
