TheFastCamera34is a highspeed 640x480 pixel camera system based on a high-speec interline CCD.

The camera includes a Nexperia PNX1502/ PNX1702 image processor/FPGA/memory subsystem which can process image data from the sensor in real time.

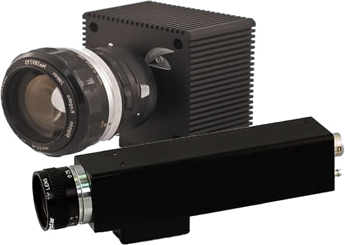

Image data and results can be returned over itsCamera Link interface. Programming tools allow this camera to be a customizable stand-alone image processing system for complex applications including object recognition, defect classification and customer imaging algortihms.The FastCamera 34 comes in two sizes:

1. 28mm x 26mm x 125 mm

2. 63mm x 63mm x 57mm

FastCamera 34 Key Features:

Resolution 640(H)x480(V)

•  Interline Transfer CCD
•  Pixel Size 7.4 um (H) x 7.4 um (V)
•  210 frames per second
•  Aspect Ratio 4:3
•  Output Sensitivity 30 uV/e
•  Synchronous or Asynchronous Trigger
•  12 bit ADC
•  Bayer pattern color or monochrome
•  On board Nexperia PNX1502/PNX1702 @ 300/500 MHz
•  256 MB in-camera memory
•  Xilinx 700/1400K gate Spartan user programmable FPGA
•  FPGA mermory
•  Full range of software tools
•  User programmable in C/C++
•  Camera Link Interface
• Optional GigE output

•  2 TTL Outputs
•  1 TTL trigger input
•  Multiple optional user programmable I/Os
