高速慢速攝影系統 / 高速相機 High Speed
可攜式高速攝影DVR儲存器 2

No. No. FR-HS-CORE2


IOI_Core2

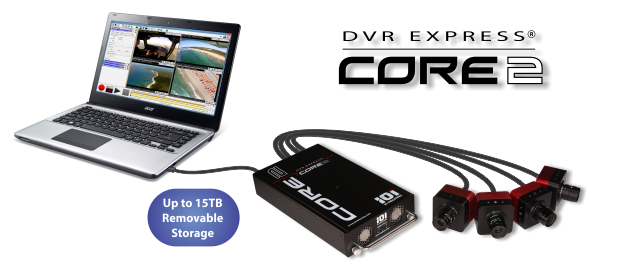

Multi-Camera Uncompressed Video Recorder

The new DVR Express® Core 2 builds on the success of the Core series, offering more camera inputs and faster direct-to-disk recording speed, enabling more of the latest industrial and scientific cameras to be reliably recorded over long durations. As well, the faster host PC speed means better live video display and shorter file export times.

CORE 2 特色

  • 確實的無壓縮影像錄製,直接進行硬體儲存
  • 現場長時間高速錄影
  • 精確的時間標記和相機同步
  • 堅固耐用,低功率,重量輕的設計
  • 輕鬆地連接 筆記型電腦、工作站或平板電腦
  • 輸出錄影常見的影像和視訊文件格式

相容於 IOI CoreView 和 StreamsTM 7

CORE 2 規格

 Models
DVR Express® Core2 Camera Link
  • (4) Camera Link inputs, configurable as (4) CL-Base, (1) CL-Full and (2) CL-Base, or (2) CL-Base inputs with (2) CL-Base outputs (for CL-Base repeat/playback)
  • 支援多區域掃描和線掃描相機 單色/彩色 的數據類型
  • 所有配置的支持 ( Base/Medium/Full/Full 80-bit ) 的時速高達85MHZ
DVR Express® Core2 Camera Link Plus
  • 相同的功能、組件上面加上(2) CL-Full inputs,無論是從獨立的相機或dual CL-Full outputs
  • 也可配置為 (1) CL-Full input with (1) CL-Full output ( for CL-Full repeat / playback )

 Features on all models
Connection to Control Computer
  • 3/6 Gbps eSATA-2/3 (USB 3.0 adapter included)
  • Required for configuration and operation
  • Allows live video display, post-recording playback and video export to local storage
Auxiliary Signal Input / Output
  • (6) Bi-directional TTL (direction configured in pairs)
  • (2) LVDS inputs and (2) LVDS outputs
  • (1) Remote On/Off
Time Stamping
  • High-precision time stamp per frame (100ns resolution)
  • Tie stamps can be synchronized to external IRIG or GPS time code receiver
Multi-DVR Synchronization
  • Master/Slave configuration allows time reference distribution and synchronizes recording start/stop across multiple DVRs
  • Supports synchronization with previous-generation DVR Express® Core models.
control Software
  • IO Industries CoreView or StreamsTM 7 (SDKs available)
System Requirements
  • Windows XP/Vista/7/8.1/10 32/64-bit
  • Available eSATA or USB 3.0 port

 Video Storage & Recording (* depending on model and storage)
Configuration
  • Removable shuttle with high-speed solid state media
  • Up to 15TB capacity per DVR
  • Supports hardware RAID (levels 0, 1, 0+1, 3)
Supported Video Data Rate
  • UP to 1620MB/s*
Recording Format
  • Uncompressed recording files
  • DVR Express® Core file format stored in DVR Express® Core file system (proprietary)

 Mechanicals (* depending on model and storage)
Dimensions
  • 320 x 165 x 50 mm (12.6 x 6.5 x 2")
Weight
  • 1.4 kg* (3.1 Ibs)
Case
  • Anodized aluminum
Power
  • 14-25V DC, <40W*
