| SERIES： |
LCD DIGITAL MICROSCOPE |
|
| MODEL： |
FRLM-280 |
| INTRODUCTION： |

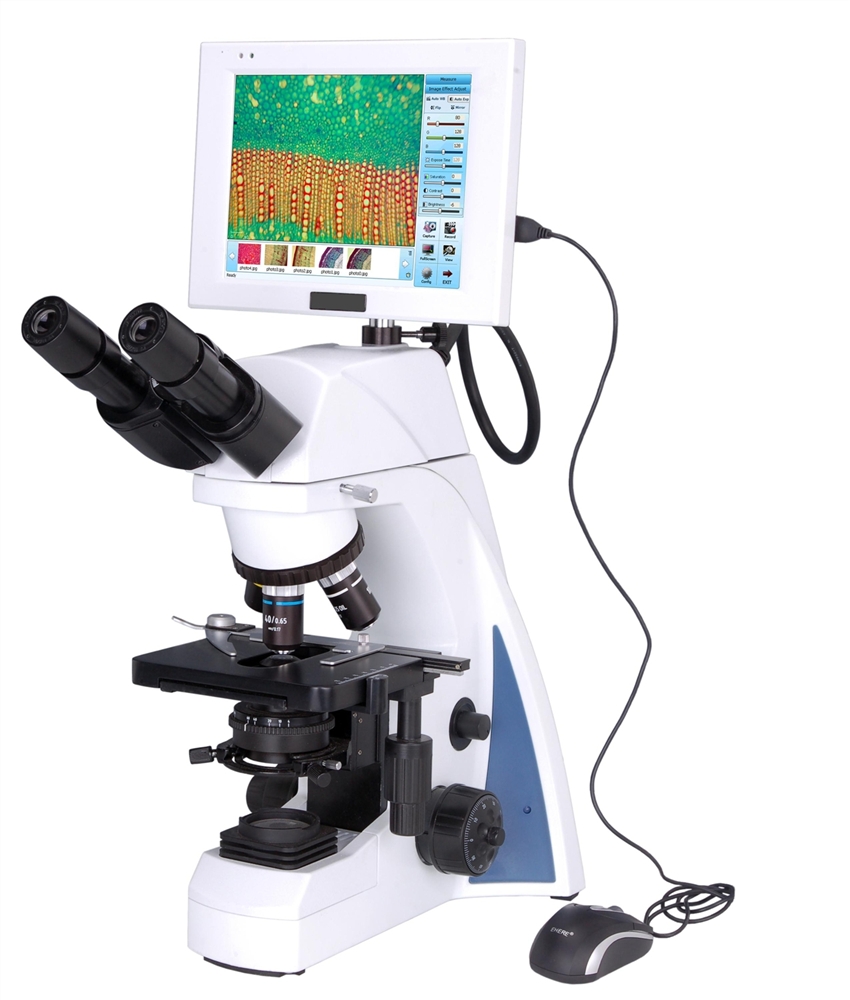

This LCD digital microscope FRLM-280 is a wholly new generation microscope system that has an embedded system. With a 8.4” TFT screen, it works like a computer. You can take photos, take videos and take measurement on the machine. With W-LAN and LAN function, you can directly connect the microscope in to the internet. Then you can transfer the images and videos to remote places. With friendly man-machine interface, powerful processing function (real-time preview, dynamic calibrating and measuring), multiple peripheral interfaces, easy to operate and comfortable mechanical design, it is your best assistant in teaching, electronic inspection, biological and medical research!
|
Features
- The FRLM-280 LCD digital microscope is a new generation microscope that with an embedded operation system WinCE 5.0, it can link mouse or keyboard, just like a micro computer.
- It supports 100M Ethernet network, WI-FI wireless net and can communicate with remote PC.
- With 8.4 Inch TFT touching screen, friendly man-machine interface, multiple peripheral interfaces and powerful processing function, make it very easy to operate.
- It can be widely used in various optical micro fields, such as teaching, biological and medical researching, electronic inspection and so on.
|
Specification
| Specification |
Details |
FRLM-280 |
| Digital part |
2.0 Mega Pixels CMOS Sensor |
● |
| W-LAN and LAN function |
● |
| Viewing Head |
Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm |
● |
| Eyepiece |
Wide Field Eyepiece EW10×/ 18 |
● |
| Objective |
Infinite Semi-Plan Achromatic Objective 4×、10×、40×、100× |
● |
| Nosepiece |
Quadruple Nosepiece |
● |
| Stage |
Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm |
● |
| Condenser |
Sliding-in centerable condenser NA12.5 |
● |
| Illumination |
6V/ 20W Halogen Lamp Illumination, Adjustable Brightness |
● |
| LED Illumination, Adjustable Brightness |
○ |
| LCD Screen |
8.4 Inch TFT Touching screen |
● |
| Output |
USB2.0、AV and VGA Output,100M Ethernet interface |
● |
| System |
Windows CE 5.0 |
● |
| Software |
NMS(microscope software) & NMS Client(computer software) |
● |
| SD Card |
Expandable to Max 2GB Kinston SD Card |
○ |
| Mouse |
. |
○ |
Note: ● Standard Outfit, ○ Optional
|
