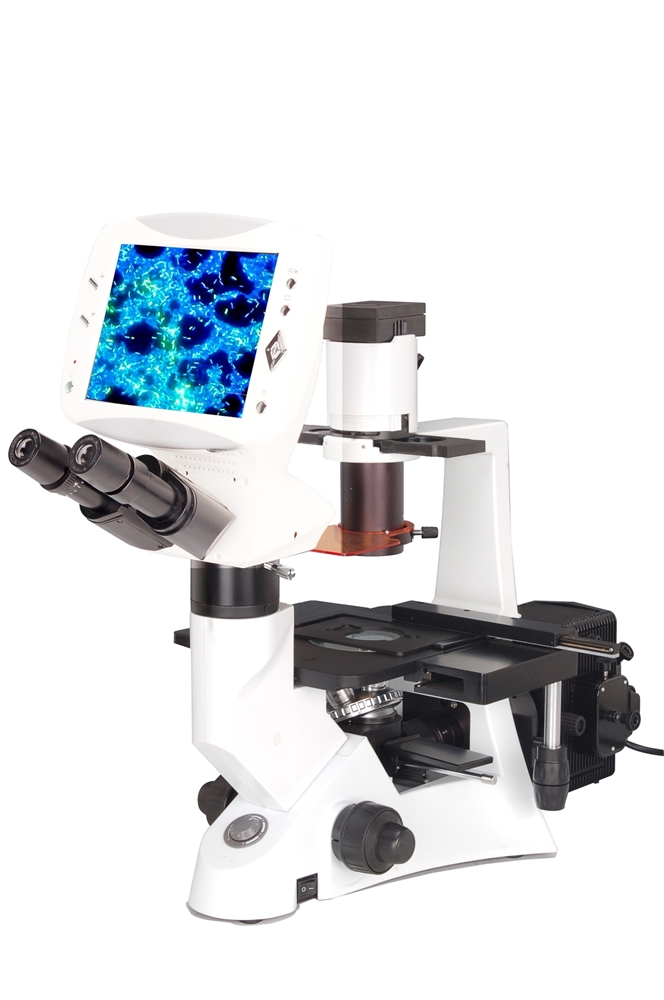

FRLM-700B compound digital LCD inverted fluorescence microscope is consisted of an inverted microscope, an epifluorescence device, an 8” LCD screen and a 5 Mega Pixel camera, it is equipped with long working distance plan achromatic lens, large field of vision eyepieces and it renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It also features the latest 5 Mega Pixel digital imaging microscopy techniques for quick and easy snapshots or videos. Innovative inverted structure, sharp image display, convenient and special for viewing cell tissue incubating
More stable and reliable power supply boxes, with digital display and a timer.
Protect the light leak with advanced lamp housing
It is consisted of an inverted fluorescence microscope, an 8” LCD screen and a 5 Mega Pixels camera, images and videos can be share with other people.
Real time images display, images and video recording.
USB Cable for transferring data to a PC.
SD Card( (Maximal Storage Capacity is 4G)) slot for storage and printing
Equipped with long working distance condenser, phase contrast devices and long working distance flat-field phase contrast objective lens, FRLM-700B can be used to observe the objects in the culture bottles or culture dishes.
Specification
Digital Parts
Pixel
500 Mega
Photo Resolution
2560X1920-1600X1200
Video Resolution
640X480
Sensor Size
1/2.5 Inches
LCD Screen
8 Inches TFT Screen, Resolution is 800X 600
Video Output
AV Output (NTSC/PAL)
Data Output
USB2.0
Menu Language
Chinese / English
Storage
SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode
Standard / Softness / Vivid
Exposure Mode
Auto Exposure
Date Mode
Year, Month, Day, Hour, Minute
Optical Parts
Viewing Head
Compensation Free Binocular Head Inclined at 30°,Interpupillary Distance 48-75mm
Eyepiece
High-point ,Extra Wide Field Eyepiece EW10×/22
Nosepiece
Quintuple
Objective
LWD Infinite Plan Objective
4×/ 0.1, WD 18 mm
40×/ 0.6, WD 2.6mm
Infinite Plan Phase Objective
PH 10×/ 0.25, WD 10 mm
PH 20×/ 0.4, WD 5.1mm
Condenser
ELWD Condenser NA 0.3, LWD 72 mm
Focusing System
Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7 mm Per Rotation, Fine Stroke 0.2mm Per Rotation
Stage
Plain Stage 160×250 mm
Glass Insert
Auxiliary Stages70×180mm
Illumination
Halogen Lamp6V/ 30W
Filter
Blue ,Green and Ground Glass (ф45mm)
Phase Annulus
.
Reflected Light Source
.
Excitation
Dichroic Mirror
Barrier Filter
Blue excitation
BP460∼490
DM500
BA520
Green excitation
BP480∼550
DM570
BA590
Lamp
100W HBO Ultra Hi-voltage Spherical Mercury Lamp
Protection Barrier
Barrier to Resist the Ultraviolet Light
Power Supplier
Power Supplier NFP-1,220V/ 110V Inter Changeable ,Digital Display
Immersion Oil
Fluorescent Free Oil
Centering Plate
.
Optional Parts
Objective
LWD Infinite Plan Objective
10×/ 0.25, WD 10mm
20×/ 0.4, WD 5.1mm
Infinite Plan Phase Objective
PH 40×/ 0.6, WD 0.35mm
Infinite Plan Fluorescent Objective
4×/ 0.13, WD 16.3mm
10×/ 0.3, WD 12.4mm
20×/ 0.4, WD 1.5mm
40×/ 0.6, WD 2.2mm
Stage
Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm
