HYPERSPECTRAL (HSI) CAMERAS sensor types
高光譜相機 系列
Linescan 簡介
 |
High resolution, fast and flexible
|
| 100 spectral bands
|
| 600-1000nm, 4nm incremental steps
|
| FWHM 15nm
|
| Spatial resolution 2048 x (100 bands x 8 pixels)
|
| 170 frames/sec
|
 |

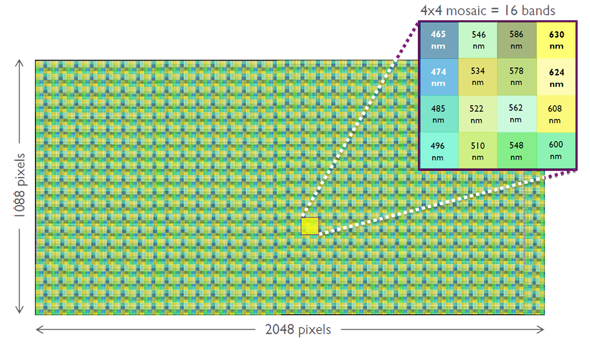

Snapshot Mosaic 簡介
 |
Extremely compact, robust
|
| Spectral resolution: 4x4 mosaic, 16 bands
|
| 465-630nm, 11nm incremental steps
|
| FWHM 15nm
|
| Spatial resolution per band: 512 x 272, up to 2mpix with interpolation
|
| 170 data-cubes/sec
|
 |

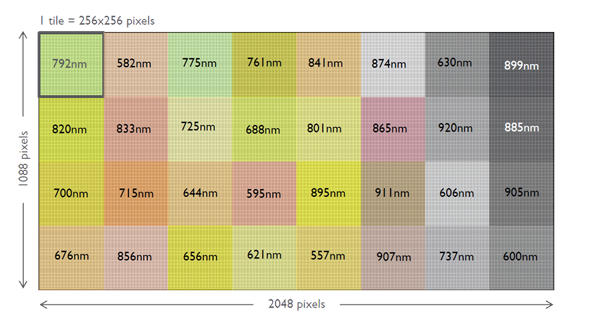

Snapshot Tiled 簡介
 |
User friendly, requires optical duplicator
|
| Spectral resolution: 32 bands
|
| 600-1000nm, 12nm incremental steps
|
| FWHM 15nm
|
| Spatial resolution per band: 256 x 256
|
| 170 data-cubes/sec
|
 |
